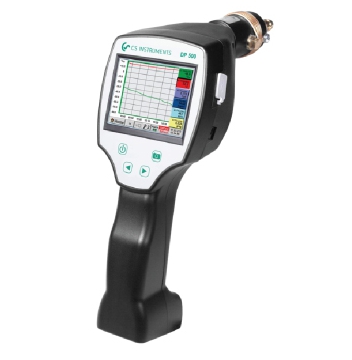

Portable Dew Point Meter with integrated data logger
The dew point meter DP 500 with data logger is the ideal portable service instrument for dew point measurement for all types of dryers down to -80°Ctd dew point. The 3.5“ graphic display with touch screen makes the operation very easy. The graphic indication of coloured measuring curves is unique. Ideal for measurement of the current dew point and for graphic indication of the dew point curve/ the switching behaviour of the dryer over a longer period of time.
Up to 100 million measured values can be stored with date and measuring site name. The measured data can be transferred to the computer via USB stick. The data can be evaluated comfortably by means of the software CS Soft Basic. Measured data and service reports can be issued easily and quickly.

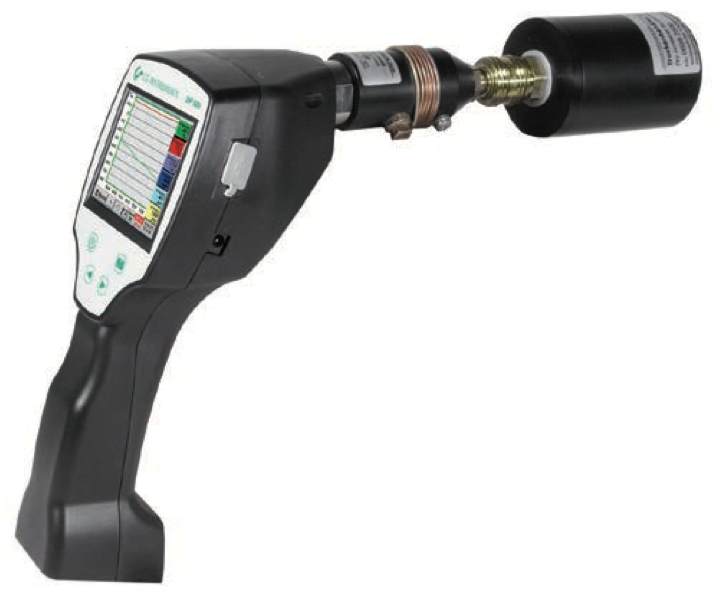

Dry Container for sensor protection and quick adaption time

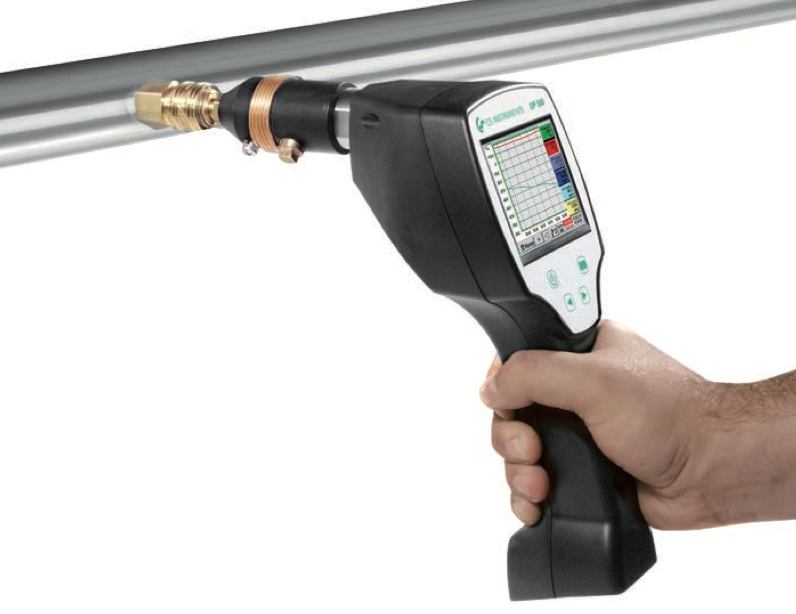

Quick installation by means of measuring chamber and quick coupling

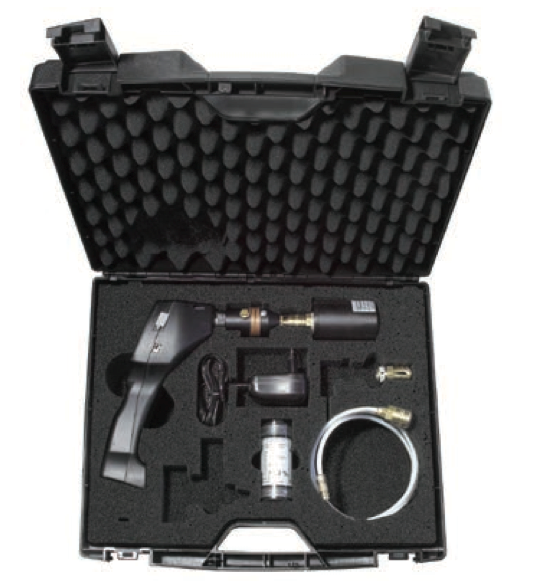

Transport Case Everything in one case

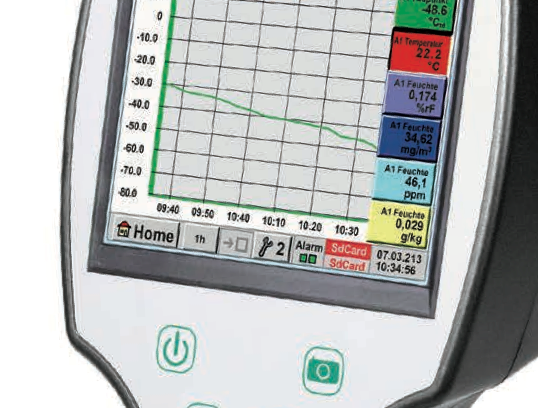

Graphic View & Screenshot

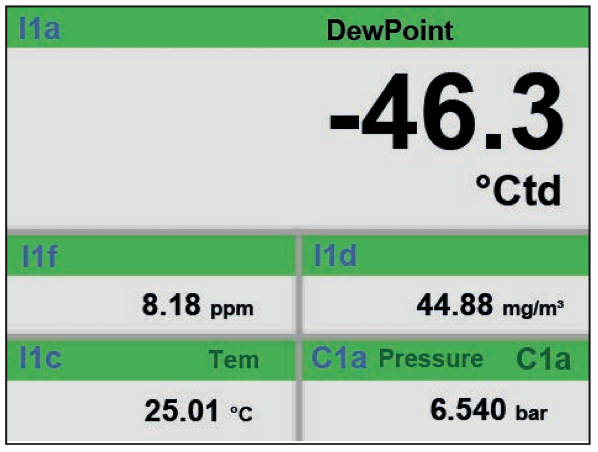

Multiple Humidity Parameters
100 million measure values

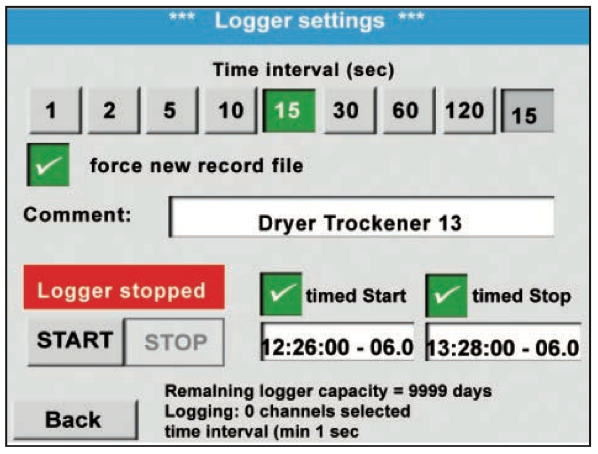

Logging interval is freely to set
| Measuring range | Dew Point -80...+50 °Ctd Humidity 0...100 % RH Temperature -20...70 °C |
| Accuracy | ± 0.5 °Ctd at -10...+50 °Ctd Typical ± 2 °Ctd (further range) |
| Measuring Units | °Ctd, g/m3, mg/m3, ppm V/V, g/kg, °Ctd atm, % RH |
| Display | 3.5" touch panel, TFT transmissive, graphics, curves, statistics |
| Pressure range | -1...50 bar, Optional: Special version up to 350 bar |
| Operating temperature | -20...+70 °C (Medium) 0...+50 °C (Ambient) |
| Interface | USB interface |
| Data logger | 8 GB SD memory card |
| Power supply | 100 – 240 VAC/50 – 60 Hz, 12VDC – 1A Internal rechargeable Li-Ion batteries, approx. 12 hours continuous operation 4 hours charging time |
| Power supply for sensor (DP510 only) | Output voltage: 24 VDC ± 10% Output current: 120 mA in continuous operation |
| Screw-in thread | G 1/2" stainless steel |
| EMC | DIN EN 61326 |
| Dimensions | 125 x 96 x 245 mm |
| Weight | 550 grams |
