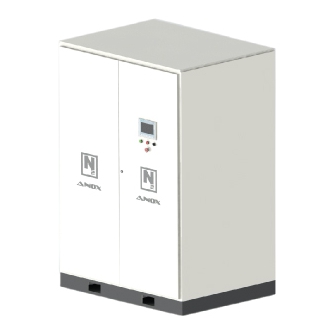

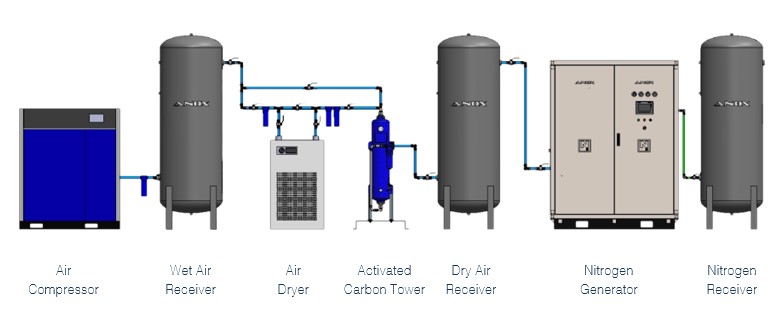

ANOX’s CUBE Series - Cabinet type of nitrogen generator are equipped steel or stainless steel enclosure, HMI touchscreen control panel and also integrated with nitrogen flow transmitter and dew point transmitter. The touchscreen provides a normal start-up system, monitors/controls the operation of the process valves, monitors signals coming from the pressure transducers, and provides an alarm system, as well as a fail-safe shutdown mode. This control panel also features diagnostic capabilities and Ethernet access for remote monitoring of process parameters. The various color screens are easy to follow as the user-friendly interface maintains a consistent template design.
| Technology Employ | Pressure Swing Adsorption |
| Controlled system | PLC |
| Nitrogen Purity | 99 – 99.999% |
| Capacity | 1 – 40 Nm3/h |
| Inlet Air Pressure | Min. 6 – max. 10 bar |
| Outlet Pressure | Inlet pressure minus 1 bar (+/- 0.5) |
| Product Dew Point | -35°C PDP (+/- 5) |
| Operating Temperature | 5 – 55 oC |
| Electrical Supply | 230V / 50Hz / 1Ph |
| Noise Level | < 75 dB |
Model | N2 Flowrate – Nm3/h at indicated vary N2 purities | Dimensions | Weight | ||||
99.0% | 99.5% | 99.9% | 99.99% | 99.999% | (LxWxH) mm | (kg) | |
NX10C | 28 | 18 | 15 | 10 | 5 | 1400 x 1000 x 1900 | 850 |
NX15C | 45 | 40 | 28 | 18 | 8 | 1600 x 1000 x 2100 | 1000 |
NX20C | 83 | 68 | 43 | 25 | 14 | 1600 x 1000 x 2100 | 1250 |
NX30C | 105 | 86 | 55 | 31 | 18 | 1600 x 1200 x 2400 | 1500 |
NX40C | 128 | 105 | 67 | 38 | 21 | 1600 x 1200 x 2400 | 1750 |
