Oxygen Generator

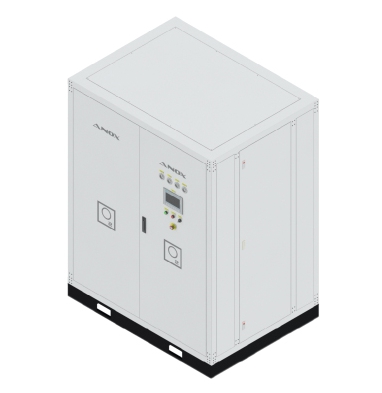

ANOX’s OXI-CUBE Series - Cabinet type of oxygen generator are equipped steel or stainless steel enclosure, HMI touchscreen control panel and also integrated with nitrogen flow transmitter and dew point transmitter. The touchscreen provides a normal start-up system, monitors and controls the operation of the process valves, monitors signals coming from the pressure transducers, and provides an alarm system, as well as a fail-safe shutdown mode. This control panel also features diagnostic capabilities and Ethernet access for remote monitoring of process parameters. The various color screens are easy to follow as the user-friendly interface maintains a consistent template design.
| Technology Employ | Pressure Swing Adsorption |
| Controlled system | PLC |
| Product Purity | 93% (+/- 3%) |
| Capacity | 3.5 – 17.9 Nm3/h |
| Inlet Air Pressure | Min. 6 – max. 8.5 bar |
| Outlet Pressure | 6 barg (+/- 0.5) |
| Product Dew Point | -50°C PDP (+/- 5) |
| Operating Temperature | 5 – 55 oC |
| Electrical Supply | 230V / 50Hz / 1Ph |
| Noise Level | <75 dB |
Model | O2 Flowrate – Nm3/h at indicated vary O2 purities | Dimensions | Weight | ||
90% | 93% | 95% | (LxWxH) mm | (kg) | |
OXI-CUBE 5 | 3.7 | 3.6 | 3.5 | 1000 x 600 x 1500 | 350 |
OXI-CUBE 10 | 4.8 | 4.7 | 4.6 | 1060 x 870 x 1900 | 500 |
OXI-CUBE 15 | 8.5 | 8.3 | 8.1 | 1060 x 1000 x 2050 | 800 |
OXI-CUBE 20 | 12.0 | 11.7 | 11.5 | 1200 x 1000 x 2200 | 1200 |
OXI-CUBE 30 | 15.2 | 14.8 | 14.5 | 1600 x 1200 x 2400 | 1600 |
OXI-CUBE 40 | 18.9 | 18.3 | 17.9 | 1800 x 1500 x 2470 | 2000 |
