Oxygen Cylinder Filling Plant

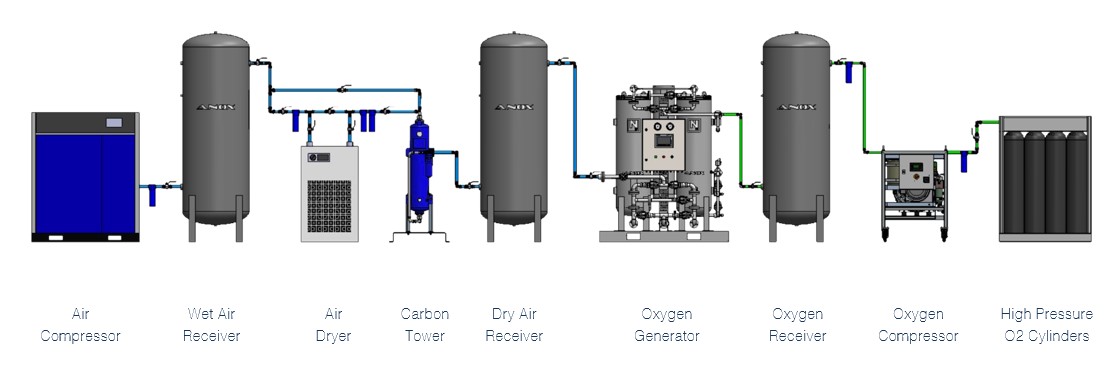

ANOX oxygen generators can be incorporated with high pressure oxygen compressor that provides an infinite supply of nitrogen gas on-site for high pressure application or cylinder filling. Complete plants include a feed air compressor, air receivers, air dryer with filtration, oxygen generator, oxygen receiver, oxygen compressor and a cylinder filling rack.
This system is a safe, convenient and cost-effective alternative to renting High Pressure Oxygen Cylinders for a wide range of industrial applications. This gives you the ability to fill your own cylinders for a fraction of the cost of cylinder gas purchase and delivery. Most filling plant use oxygen booster to fill cylinders with oxygen from up to 150 barg (2200 psig).
The high pressure cylinder filling plant is totally automated system and can either be static where gas cylinders are permanently manifolded into the application or a traditional cylinder filling station where cylinders are manually loaded and unloaded for use in remote locations.
| Technology Employ | Pressure Swing Adsorption |
| Controlled system | PLC |
| Oxygen Purity | 93% (+/- 3%) |
| Capacity | Up to 100 cylinders per day |
| Filling Pressure | 150 - 200 bar |
| Product Dew Point | -50°C PDP (+/- 5) |
| Operating Temperature | 5 – 55 oC |
| Outlet Connection | ¼” NPT or BSPT |
| Cylinder Connection | CGA 540 Standard |
| Electrical Supply | 415V / 50Hz / 3Ph |
