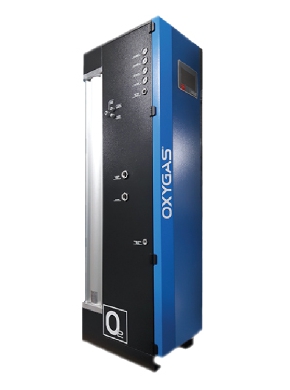

Oxygen Generator
OG Series is a modular & scalable PSA nitrogen generator system that delivers a consistent, convenient & reliable nitrogen supply for numerous manufacturing and processing industries. With OG you don’t need to buy oxygen gas anymore, you can make it yourself on-site & on demand. The OG series oxygen generators minimizes obstructions to allow flows of nitrogen from few liters per minute to hundreds of cubic meters per hour. The modular structure can easily be upgraded at any time by simply adding modules to the generator.
| Technology Employ | Pressure Swing Adsorption |
| Controlled system | PLC + HMI |
| Nitrogen Purity | 90 – 95% |
| Capacity | 2 – 19 Nm3/h |
| Inlet Air Pressure | Min. 7 – max. 10 bar |
| Outlet Pressure | 6 bar (+/- 0.5) |
| Product Dew Point | -50°C PDP (+/- 5) |
| Operating Temperature | 5 – 45 oC |
| Electrical Supply | 230V / 50Hz / 1Ph |
| Noise Level | <75 dB |
Model | Inlet Pressure | Flow Rate vs Purity | Connection | Dimension | Weight | |||
Bar(g) | 90% | 93% | 95% | Inlet | Outlet | mm | kg | |
OG5 | 7 | 1.4 | 1.3 | 1.2 | 1" | 1/2" | 400x600x1190 | 139 |
OG10 | 7 | 3.1 | 3.1 | 3.0 | 1" | 1/2" | 400x700x1906 | 195 |
OG20 | 7 | 6.2 | 6.1 | 6.0 | 1" | 1/2" | 400x900x1906 | 296 |
OG30 | 7 | 9.3 | 9.2 | 9.0 | 1" | 1/2" | 400x1100x1906 | 396 |
OG40 | 7 | 11.5 | 11.3 | 11.2 | 1" | 1/2" | 400x1300x1906 | 496 |
OG50 | 7 | 14.4 | 14.2 | 14.0 | 1" | 1/2" | 400x1500x1906 | 597 |
OG60 | 7 | 16.7 | 16.5 | 16.2 | 1" | 1/2" | 400x1700x1906 | 697 |
OG70 | 7 | 19.5 | 19.2 | 18.9 | 1" | 1/2" | 400x1900x1906 | 797 |
1. Indicated flow rates are in Nm3/h and valid for generator operating at atmospheric conditions +20°C, 1013 mbar and 60% RH, 7 bar(g) inlet feed air pressure. Definition of Nm3 based on reference conditions 0°C, 101,325 kPa(a) and dry basis. For performances in other conditions please contact directly the manufacturer. The manufacturer reserves the right of modifying present data without any prior advice. Please always report to his indications.

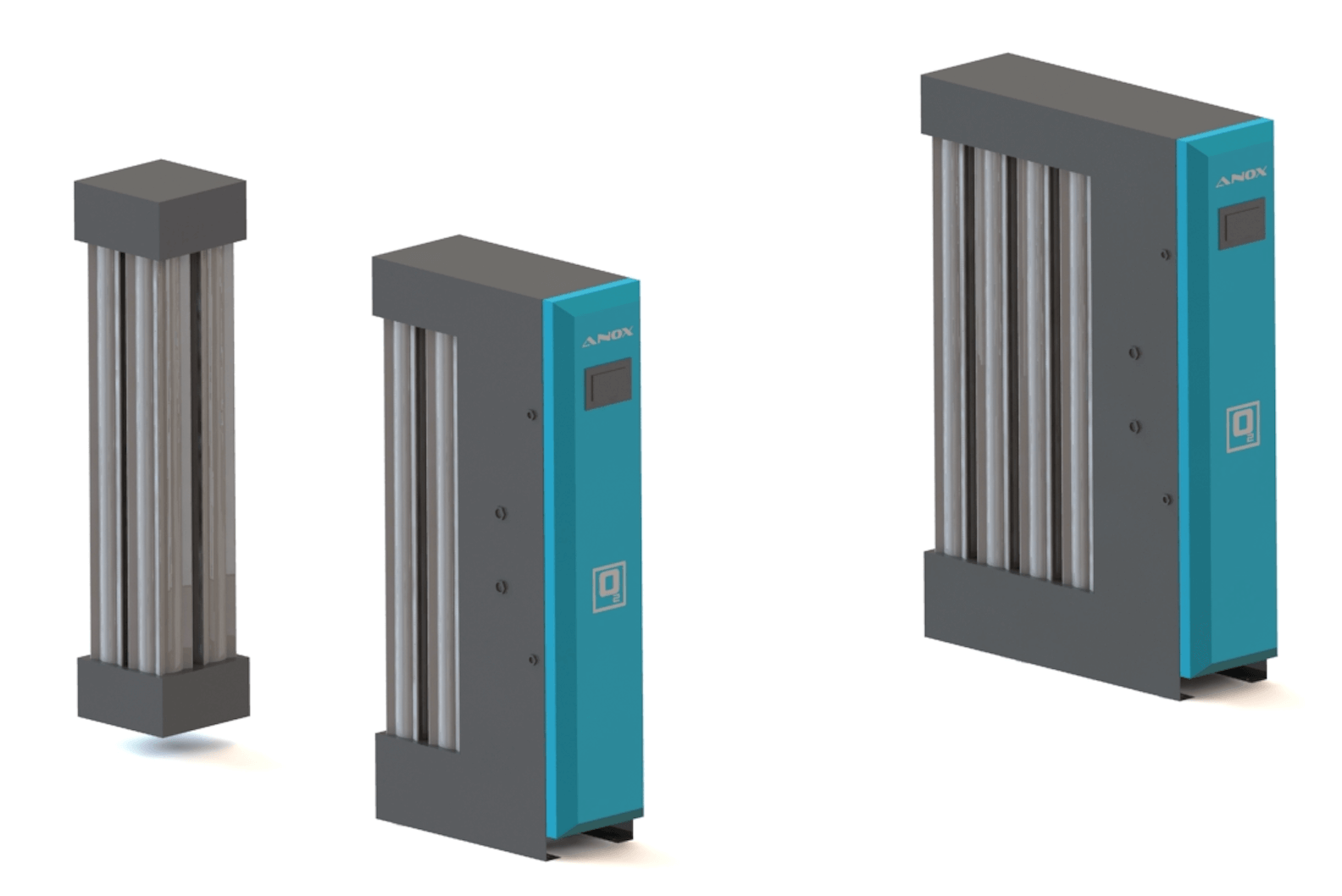

Up to 7 modules can be added to each single OG unit in less than a shift, increasing nitrogen production capacity with minimal downtime.
