N-SKID Series

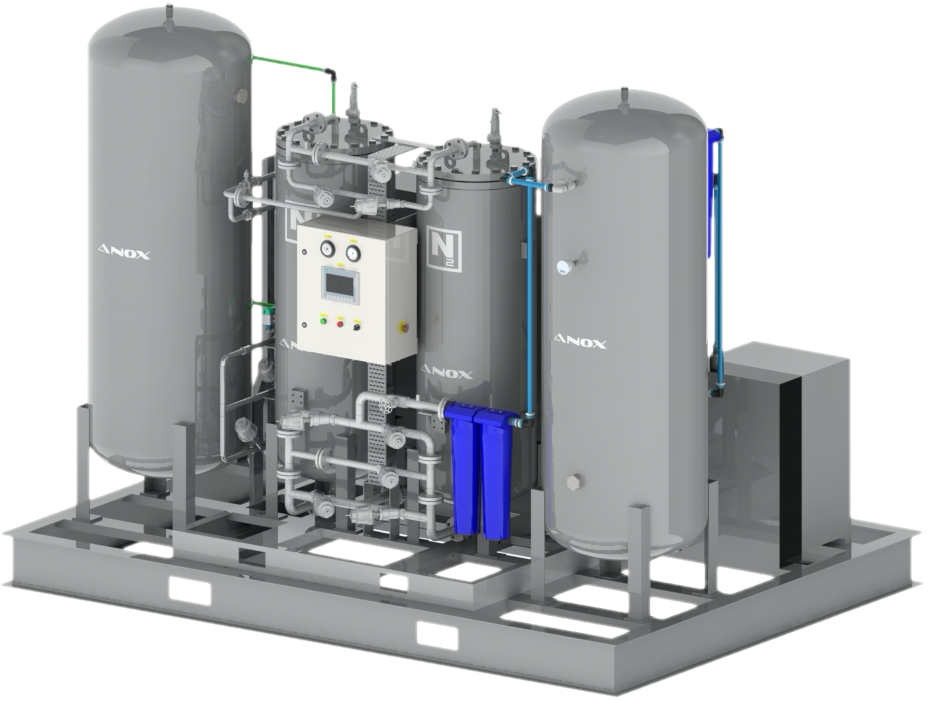

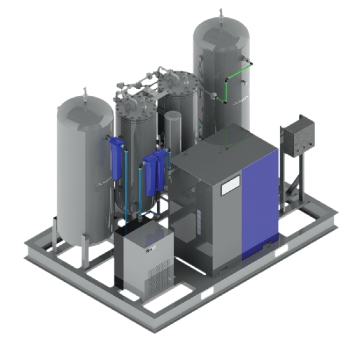

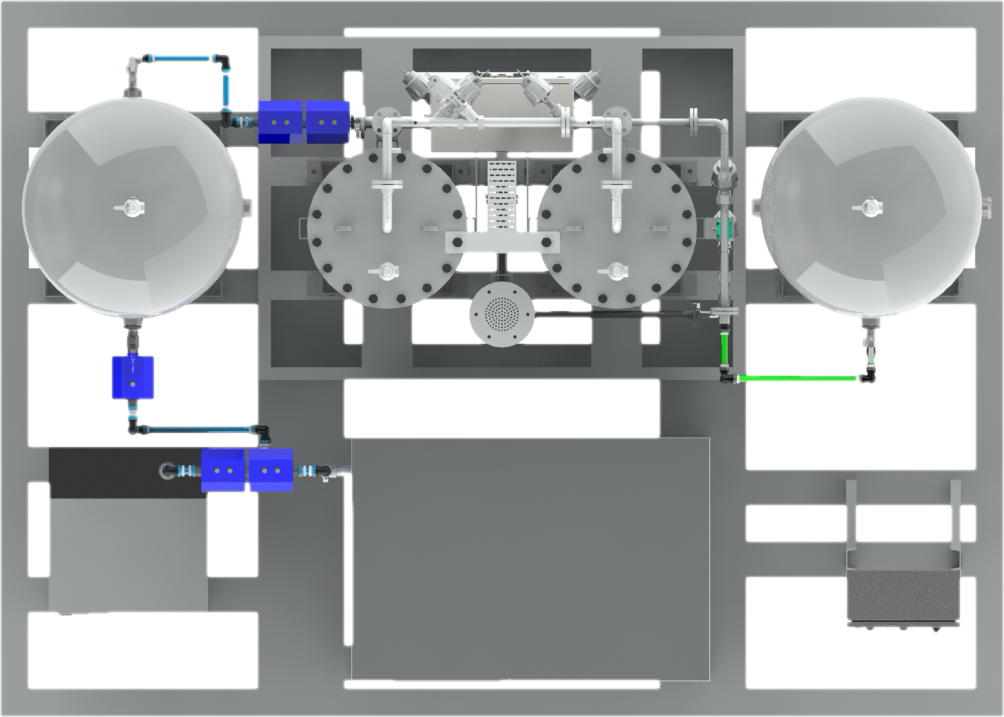

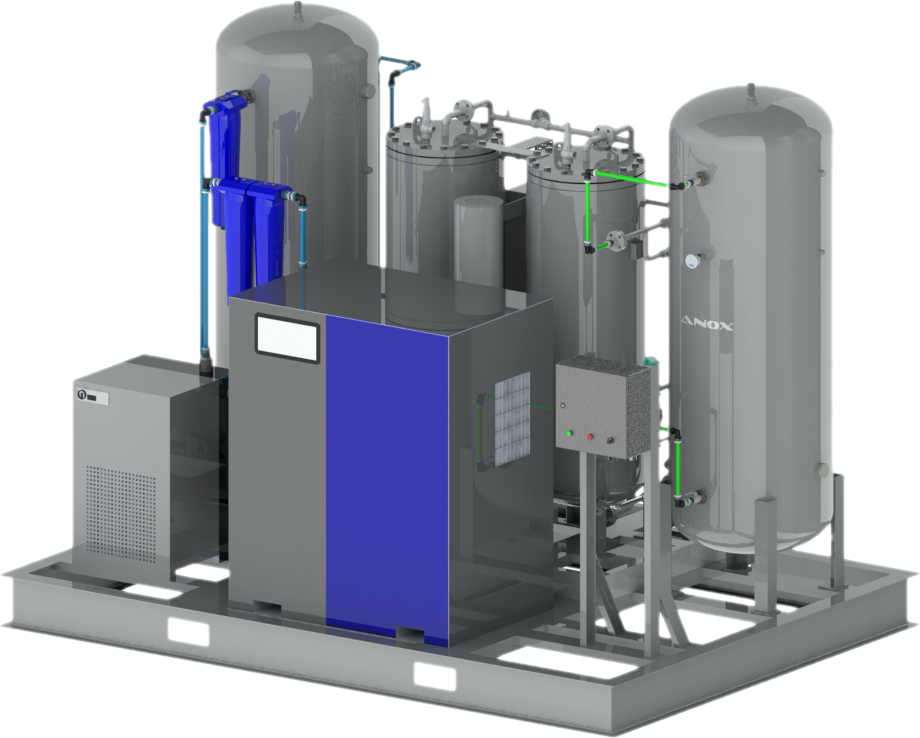

N-SKID Series Nitrogen System

In line with our experience, we provides complete factory-engineered packaged solutions, from initial concept and CAD design to skid. N-SKID is a complete nitrogen generation system, including air compressor, air dryer, air filtration, piping, tanks and nitrogen generator – with all equipment conveniently assembled onto a compact and portable metal skid platform.

The fixed footprint feature and simple plug & play design allows for greater installation ease and flexibility to move or relocate the system within a facility. N-SIKID is capable to produce a continuous and on-demand volume of high-quality nitrogen gas.

Key Features

  • “All In One” designed, equipped with compressor, dryer, filters and buffer tanks, everything pre-install and tested.
  • Fast installation at site, plug & play and ready to use once connect power and piping.
  • Integrated with HMI Display of real time operation status, parameters trend graph and history data
  • Alarm & service log appearance for fast & easy maintenance & trouble shooting
  • With local DOSH approval for adsorption / pressure vessel (ASME)

Typical Application

  • Tank blanketing
  • Modified Atmosphere Packaging (MAP)
  • Gas Assisted Injection Molding (GAIM)
  • Heat treatment of ferrous & non-ferrous metals
  • Inerting of flammable liquids
  • Laser cutting
  • Pest control and fire safety in silos (e.g. corn, powdered food)
  • Prevention of dust explosions
  • Reflow and wave soldering of PCBs
  • Spray painting
  • Any other application requiring small, medium and big flow rates of nitrogen


  • High pressure nitrogen booster
  • High pressure cylinder filling station
  • Nitrogen piping distribution from skid to point of use


Technology EmployPSA or Membrane
Controlled systemPLC
Nitrogen Purity95 – 99.999%
Capacity1 – 500 Nm3/h
Outlet Pressure6 to 8.5 barg
Product Dew Point-35°C PDP (+/- 5)
Operating Temperature5 – 55 oC
Electrical Supply415V / 50Hz / 3Ph
Noise Level< 75 dB

Product Information

N-SKID Series Data Sheet
