OX Series

OX Series

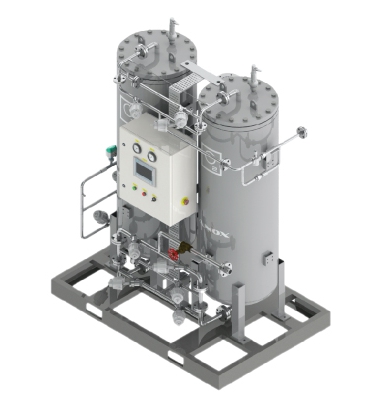

Oxygen Generator

OX Series is newly developed oxygen system based on the latest air separation technologies Pressure Swing Adsorption (PSA). OX Series are available in several standard models with capacities from 3.5 to 143 m3 of oxygen per hour at up to 95% oxygen concentration. The system is designed and made for 24/7 operation and each oxygen generator is equipped with an automatic start & stop function, enabling the generator to adapt according to the current consumption.

Oxygen Generators produce gaseous oxygen when electricity and compressed air is supplied, OX Series offer a cost-effective, reliable and safe alternative to traditional oxygen gas supplies such as cylinders or cryogenic liquid. Along with the standard oxygen generator, we also supply the entire system for a complete solution. If you need an oxygen generator and filling station to fill high pressure cylinders, we can offer our Oxygen Filling Station. Several models of which are available

Key Features

  • Integrated with HMI Display of real time operation status, parameters trend graph and history data
  • Energy efficient control - automatic turn down to STANDBY when no consumption
  • Integrated with oxygen sensor ensure nitrogen purity meet end process requirement
  • Integrated with nitrogen flow sensor for demand monitoring
  • Integrated with dew point sensor for inlet air quality monitoring
  • Internal piping & fittings in stainless steel
  • Equipped with air inlet filters and product gas filter
  • Alarm & service log appearance for fast & easy maintenance & trouble shooting
  • With local DOSH approval for adsorption / pressure vessel (ASME)

Option

  • Medical grade of zeolite molecular sieve
  • Medical grade oxygen filters
  • Feed air compressor package
  • High pressure oxygen booster
  • High pressure cylinder filling station
  • Piping distribution from compressor to point of use

Typical Application

  • Aquaculture
  • Gold Mining
  • Ozone Generation
  • Waste Water Treatment
  • Veterinary
  • Medical & Healthcare
  • Brazing & Soldering
  • Steelmaking
  • Pulp & Paper

Specification

Technology EmployPressure Swing Adsorption
Controlled systemPLC
Nitrogen Purity90 – 95%
Capacity3 – 150 Nm3/h
Inlet Air PressureMin. 6 – max. 8.5 barg
Outlet PressureInlet pressure minus 1 barg (+/- 0.5)
Product Dew Point-50°C PDP (+/- 5)
Operating Temperature5 – 55 oC
Electrical Supply230V / 50Hz / 1Ph
Noise Level<75 dB

Performance Data

Model

O2 Flowrate – Nm3/h at indicated vary O2 purities

Dimensions

Weight

90%

93%

95%

(LxWxH) mm

(kg)

OX5

3.7

3.6

3.5

1000 x 600 x 1500

350

OX10

4.8

4.7

4.6

1060 x 870 x 1900

500

OX15

8.5

8.3

8.1

1060 x 1000 x 2050

800

OX20

12.0

11.7

11.5

1200 x 1000 x 2200

1200

OX30

15.2

14.8

14.5

1600 x 1200 x 2400

1600

OX40

18.9

18.3

17.9

1600 x 1200 x 2470

2000

OX50

28.3

27.6

26.9

1600 x 1200 x 2470

2000

NX60

37.7

36.7

35.8

2100 x 1300 x 2770

2500

OX80

44.5

43.3

42.3

2200 x 1400 x 2850

2800

OX100

55.5

54.0

52.8

2300 x 1600 x 2660

3200

OX125

65.5

63.7

63.2

2500 x 2000 x 2800

3500

OX150

75.4

73.4

71.7

2800 x 2000 x 3300

3800

OX200

105

102

100

3000 x 2100 x 3500

4400

OX225

114

111

108

3400 x 2260 x 3700

5800

OX250

132

128

125

3800 x 2400 x 3400

6400

OX300

151

147

143

4100 x 2050 x 4000

7000

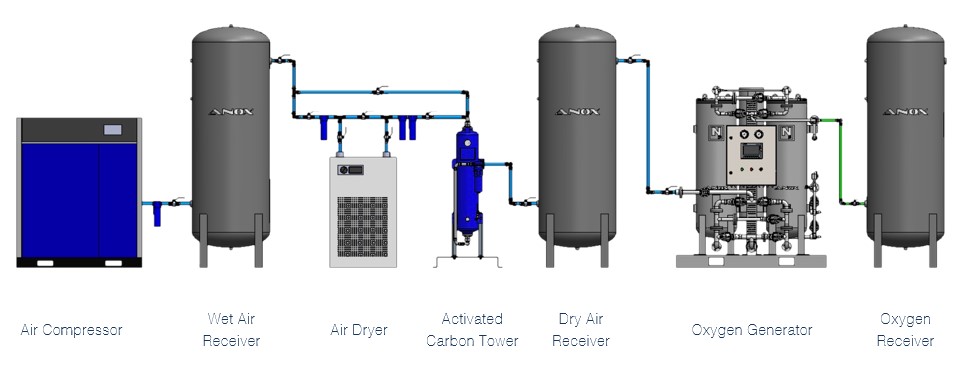

Typical Oxygen Generation System Layout
