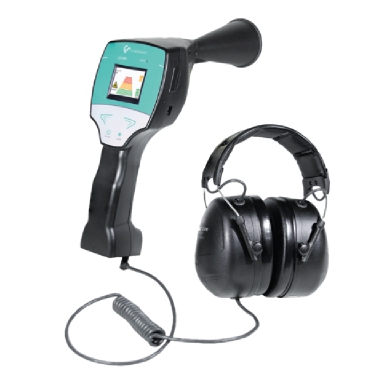

LD 400

LD 400

Ultrasonic Leak Detector

Leak detector LD 400 is the successor of the proven LD 300 and convinces by its refined sensor technology and its improved support in the tracing of leaks. By means of the LD 400 even the smallest leakages in compressed air lines, gas, vapour, vacuum plants or refrigeration plants can be detected even from distances of several meters.

LD 400 transforms the inaudible signals into a frequency which can be identified. By means of the comfortable sound- proof headset, these noises can be detected even in extremely noisy environments.

Key Features

  • Robustness and lightweight ensure a fatigue-proof use in industrial environments
  • Improved detection of leaks with optional acoustic trumpet
  • Modern lithium-ion battery with high capacity, external recharger
  • Laser pointer v
  • Minimum operating time 10 hours
  • User friendly and easy to use via keypad, no special training required
  • Integrated with laser pointer helps to spot the leaks from several meters

Accessories

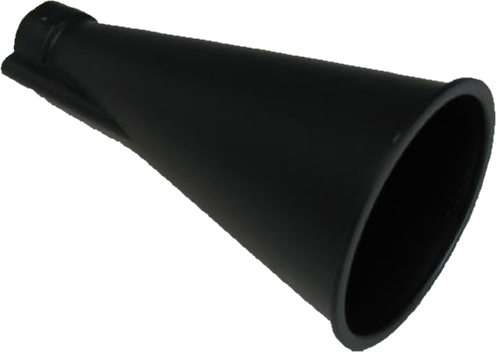

Acoustic Trumpet with Camera

Bundles the acoustic waves of the smallest leakages, strengthening the audible noise

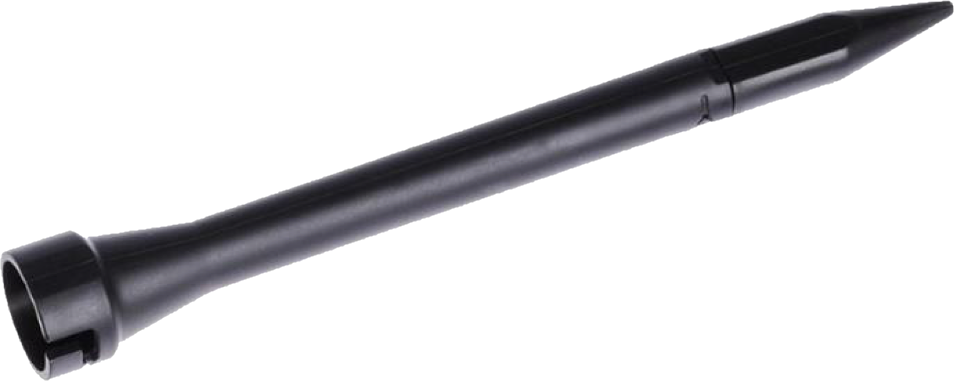

Focus Tube with Focus Tip

For precise detection of the smallest leakages in confined spaces

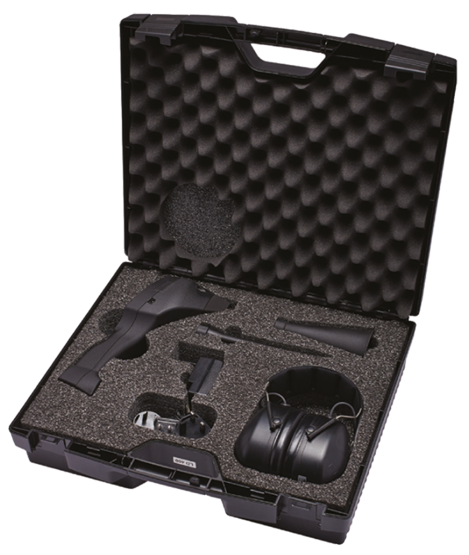

Transport Case

All accessories in a case

Technical Data

Working frequency40 kHz +2kHz
Measuring mediumCompressed air system, vacuum system, Industrial gas system (nitrogen, oxygen, CO2, helium…)
Display2” TFT colour display
Connection 3.5 mm stereo jack for headset
Power supply socket for connecting a external charger
Measuring mediumAir, nitrogen, argon, helium, CO2, oxygen, natural gas (NG), propane, bio gas, etc…
LaserWave length: 645…600 nm
Output power: < 1nW (Laser Class 2)
Operation duration10 hours
Charging timeApprox.. 1.5 hours
Storage temperature-10 to 50 oC
Weight0.4 kg, complete set in the case 2.8 kg
Case dimensions263 x 96 x 88 mm

Product Information

LD 400 Data Sheet
