With integrated camera

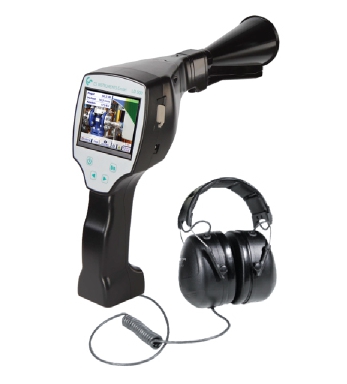

The new leak meters LD 500 with integrated camera and leakage calculation are ideal measuring instruments which help to find and document even smallest leakages (0.1 l/min corresponds to approx. 1 € p. a.) easily even in far distances.
LD 510 is the worldwide first leak meter with an additional freely assignable sensor input for all CS sensors. In addition to the leakage measurement and detection also all necessary measurements with regards to dew point, flow, pressure, and temperature ... can be carried out.

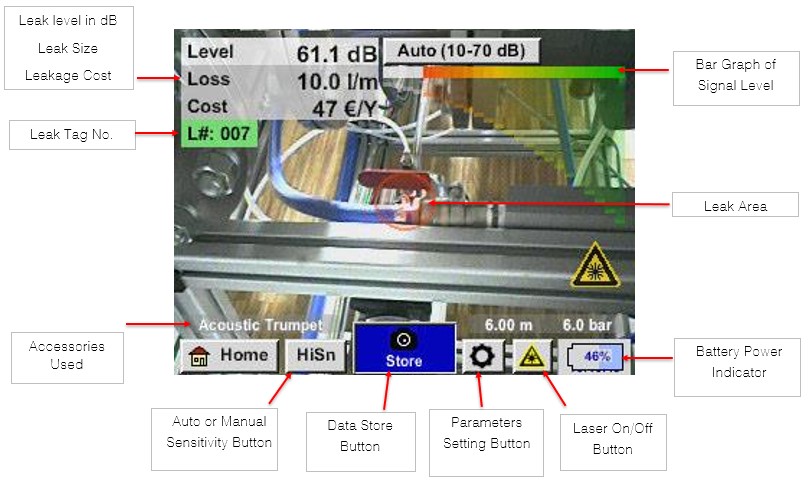

Touch Screen Display
High resolution 3.5” TFT transmissive colour touch screen
Visualize the Leak with Photograph
Build-in camera & data logger for documentation the leaks detail:
Auto Level
Adapts the sensitivity automatically to the environment and eliminates the ambient noise reliably
High Sensitivity
Air leak rate is possible to detect even smallest leakages as low as 0.1 l/min @ 6 bar system pressure
Long Workings Hours
Lithium-ion battery capacity up to 9 hours continuous operation and short charging time 1.5 hours
Data Storage
Integrated with 8GB SD card Almost unlimited storage memory for the device
USB Interface
Transmit the leak details via USB to your desktop software

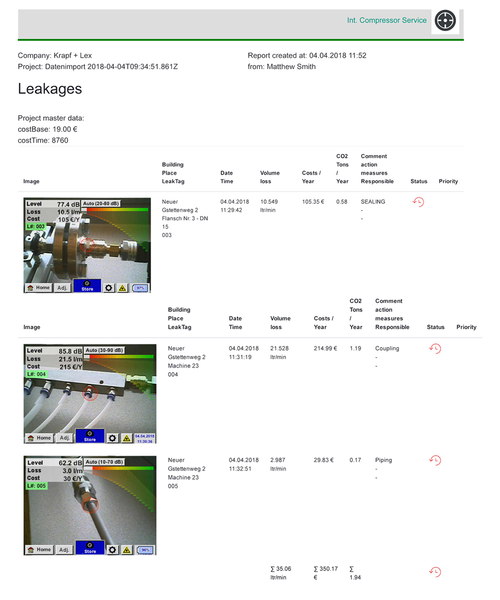

Leakage Report for ISO 50001 Audits
Detailed reports can be issued via CS Leak Reporter software. The report provide simple overview of the total leakage in litres/min and total leakage costs per year
| Working frequency | 40 kHz +2kHz |
| Measuring medium | Compressed air system, vacuum system, Industrial gas system (nitrogen, oxygen, CO2, helium…) |
| Display | 3.5” TFT transmissive touch screen |
| Interface | USB interface – for export & import data |
| Connection | 3.5 mm stereo jack for headset Power supply socket for connecting a external charger |
| Data logger | 8GB SD memory card |
| Laser | Wave length: 645…660 nm Output power: < 1nW (Laser Class 2) |
| Auto level | Adapts the sensitivity automatically to the environment and eliminates the ambient noise reliably |
| Sensitivity | min: 0.1 l/min at 6 bar, 5 m distance |
| Operation duration | 9 hours |
| Charging time | Approx. 1.5 hours |
| Storage temperature | -20 to 50 oC |
| Weight | 0.55 kg, complete set in the case 3.5 kg |
| Case dimensions | 263 x 96 x 280 mm |
The detection of compressed air and gas leaks can be more or less problematic depending on the accessibility of the systems. We therefore offer special accessories for our LD 500 leak detectors to facilitate leak detection in difficult-to-access areas. These include, for example, a special acoustic trumpet, a focus tube with focus tip, the so-called flexible "gooseneck" and a parabolic mirror. For more information please see also the additional product images on the left.

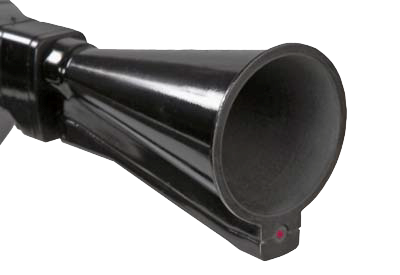

Acoustic Trumpet with Camera
Bundles the acoustic waves of the smallest leakages, strengthening the audible noise

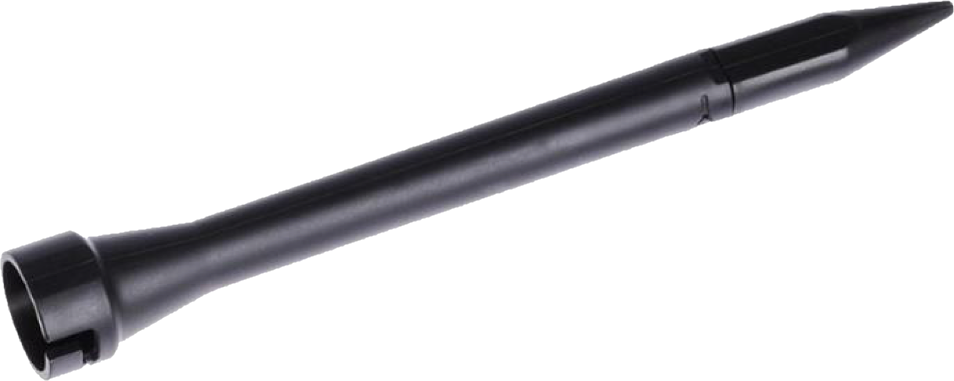

Focus Tube with Focus Tip
For precise detection of the smallest leakages in confined spaces

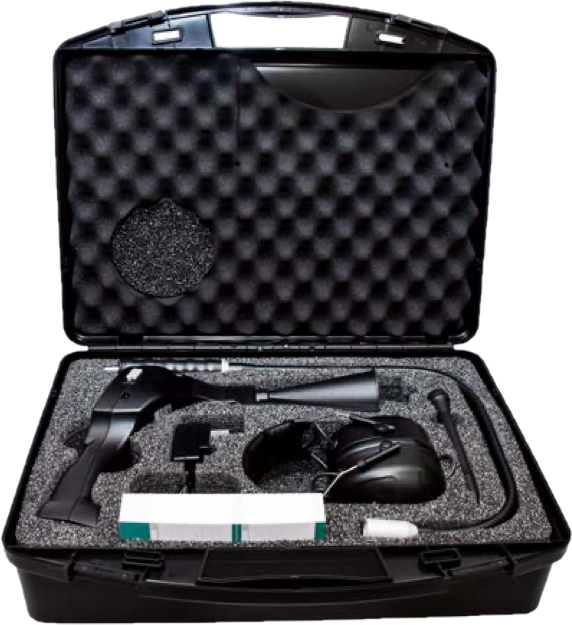

Transport Case
All accessories in a case
Leak Tag
For on-site documentation
Gooseneck (Optional)
Enables a precise detection of the leakage on in places that are difficult to access
Parabolic Mirror (Optional)
For leak detection at long distances Laser pointer and camera integrated

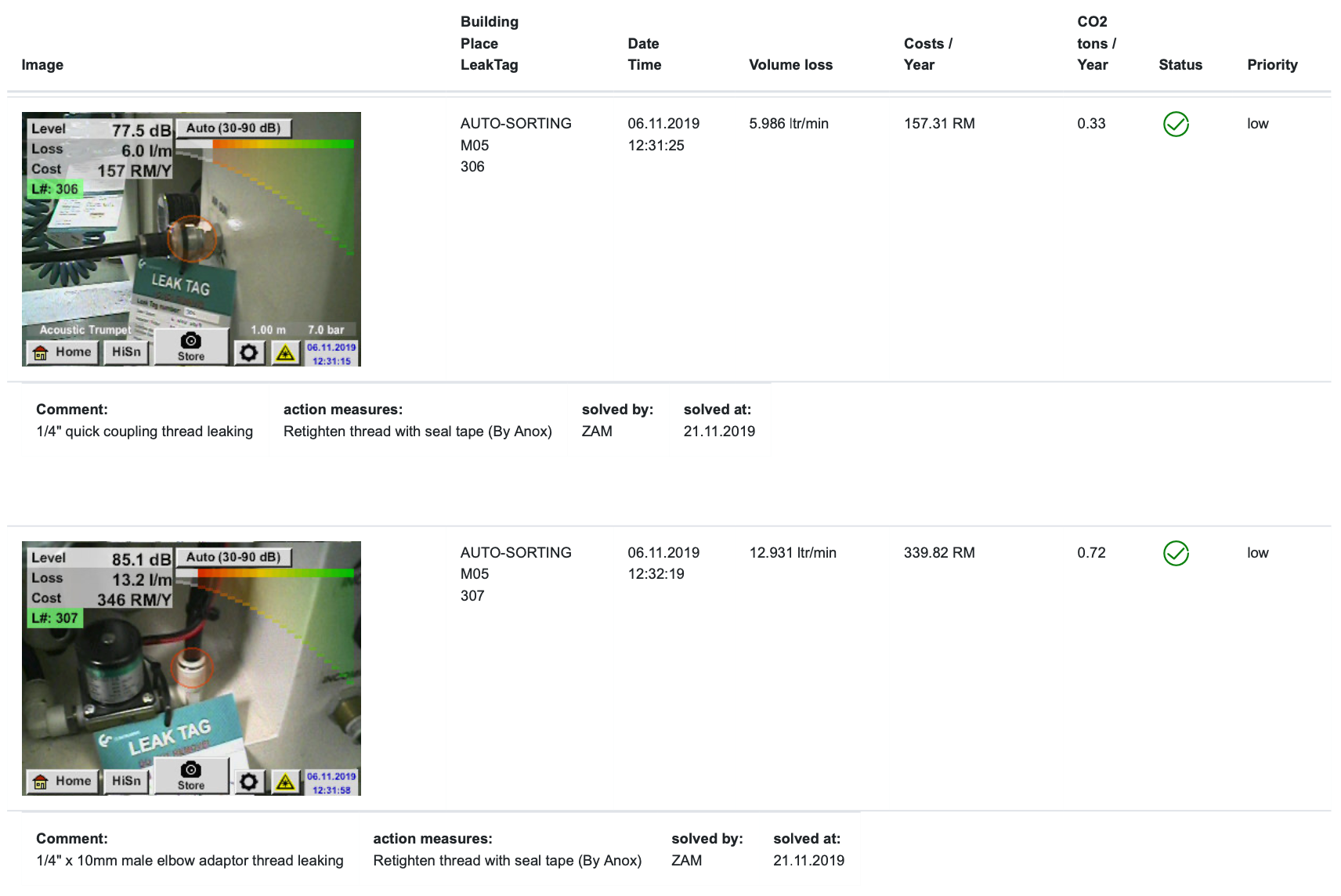

If a leak is detected and stored in our LD 500/LD510 the following data will automatically be available for export in the CS Leak Reporter software to create a report containing the following:
Detailed leak reports can be issued via PC software that can be made available to operators of compressed air systems or the head of the respective department. The report can be issued for the whole company or for each department and it documents the detected leakages easily and clearly.
Due to the summation at the end of the report it is easy to get an overview on the whole leakage amount in liters/min as well as the total leakage costs per year.
