OM400

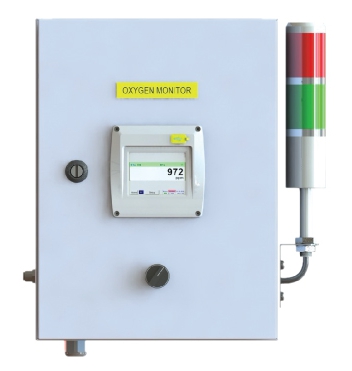

OM400 Oxygen Monitor

The OM400 O2 Monitor is a compact and robust oxygen analyser that utilises zirconia or electrochemical technology to give a reliable measurement of oxygen concentration. The zirconia sensor offers fast response time and a long service life with virtually no drift, whilst the electrochemical sensor allows measurement in background gases containing hydrocarbons.

The minimum output range of 0 to 2000 ppm is ideal for nitrogen generation or glove box monitoring. The OM400 O2 Monitor analyser can also be supplied with measuring ranges up to 0 to 96% O2 for oxygen concentrators. The flexibility is further enhanced by different mounting options and multiple sensor types.

Key Features

  • Plug & play unit, wall mounted
  • Latest high precision Zirconia or Electrochemical sensor technology
  • Integrated with pressure reducer and flow meter for sampling gas
  • Integrated with 3.5" touch screen graphic display and metal enclosure
  • Integrated with tower light
  • 2 alarm contacts and alarm values freely adjustable
  • 4...20 mA analogue output
  • Option: Ethernet and RS 485 interface (Modbus protocol)
  • Option: Data logger
  • Option with integrated with dew point sensor

Application

  • Electronic PCB board soldering process
  • Semiconductor wafer storage cabinet
  • Industrial gas application

Technical Data

Measuring range0…2000 ppm O2
0…25 % O2
Sensor input2 digital sensor inputs
Display3.5" TFT touch screen graphic display
Operation pressure-1...16 bar
Optional: High pressure version available upon request
Operating temperature-20…+50 oC (Zirconia sensor)
-20…+45 oC (Electrochemical sensor)
Output signal4…20 mA
Option: RS485 (Modbus-RTU)
Output resolution1 ppm (ppm sensor)
0.01 % (% sensor)
Response time<10 second @ 25oC (within selected range)
Sampling air inlet6 mm soft tubing
Optional: 6mm bulkhead hard tubing
Power supply110 - 230 VAC, 50 / 60 Hz
Alarm relay2 alarm relay output, change over contact, 250 VAC, max 3A
Alarm thresholds Freely adjustable
Dimension360 x 410 x 209 mm (L x D x H)

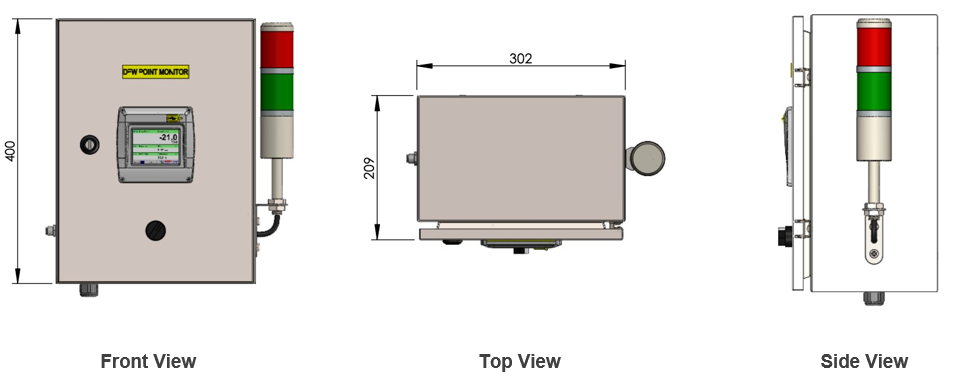

Dimension
