Particle Counter PC 400

Station & Portable Solution according to ISO 8573

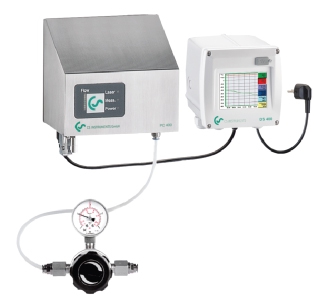

The highly precise optical particle counter PC 400 measures particles from a size of 0.1 µm and is therefore suitable for monitoring of the compressed air quality class 1 (ISO 8573). The correct function the filtration elements mounted in the compressed air is monitored and possible filter perforations are recognized immediately. The compressed air flow through the particle counter is automatically supervised.

Key Features

Data logger for long-term monitoring
Display shows trend curves (online and history curves available)
Zoom function directly on the touch screen
Integrated Ethernet interface (Modbus/TCP) and RS 485 interface (Modbus-RTU) for data transfer to superordinate controls
2 alarm relays (changeover contact 230 VAC, 3A) – threshold values freely adjustable
Easy operation via 3.5" touchscreen

Application

Medical air
Pharmaceuticals
Food and beverage
Semiconductor wafer fabs
Conveyance of hygroscopic food
High tech processes

Advantage at a Glance

Highly precise, optical laser particle counter for use in compressed air and technical gases
Highly precise optics for detecting the smallest particles up to 0.1 μm and therefore suitable for monitoring the compressed air class 1 according to ISO 8573-1
The flow rate of 28.3 l/min (1 cfm) is 10 times higher than that of the particle counters generally available on the market (usually 2.83 l/min). Advantage: Counts the smallest particles with high counting accuracy at the same time
Due to the digital data transfer (Modbus-RTU) to the chart recorders DS 400 or DS 500, 3 measuring channels can be transferred at the same time (without any faults due to check sum)
The class 1 filter which is included in the scope of delivery can be used for on-site calibration at any time. Contaminations on the optics can therefore be quickly detected or eliminated.

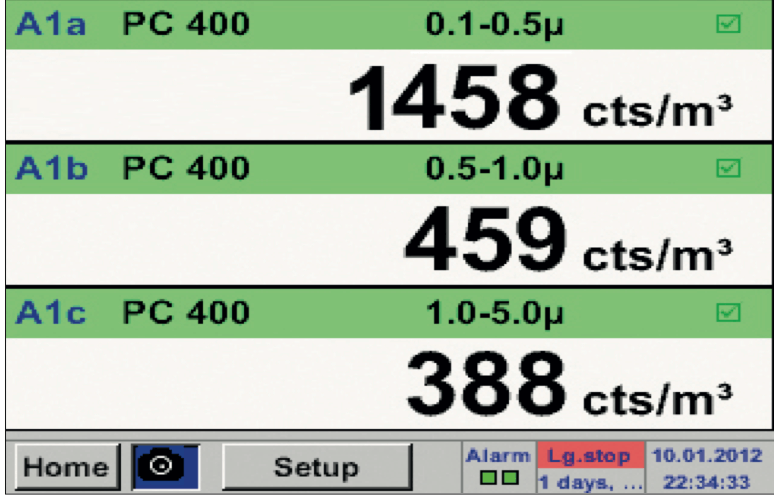

3 measuring channels according to ISO 8573-1

Particle size 0.1...0.5 μm: Number or particles per m3
Particle size 0.5...1.0 μm: Number or particles per m3
Particle size 1.0...5.0 μm: Number or particles per m3

Technical Data

Medium	Compressed air (free from aggressive, corrosive, acid, toxic, flammable and oxidising components) as well as gas types like N2, O2, CO2. Further gas types on request
Application	Downstream of activated carbon filter and activated carbon adsorber Downstream of oil-free compressed air after air dryer and filters Point of use at production machines
Application	Downstream of activated carbon filter and activated carbon adsorber Downstream of oil-free compressed air after air dryer Point of use at production machines
Parameters	Number of particles per m3 (relative to expanded air: 20 °C, 1000 hPa) Size channels for the PC 400 0.1 μm: Particle size 0.1...0.5 μm: Number or particles per m3 Particle size 0.5...1.0 μm: Number or particles per m3 Particle size 1.0...5.0 μm: Number or particles per m3 Size channels for the PC 400 0.3 μm: Particle size 0.3...0.5 μm: Number or particles per m3 Particle size 0.5...1.0 μm: Number or particles per m3 Particle size 1.0...5.0 μm: Number or particles per m3
Operating overpressure	40 bar(g) at pressure regulator inlet
Measuring gas humidity	≤ 90% relative humidity, max. pressure dew point +10°C, non-condensing humidity
Compressed air connection	6mm PTFE-hose including quick coupling
Measuring gas flow rate	28.3 l/min (1 cfm)
Interface	RS485 (Modbus-RTU)
Light source	Laser diode
Power supply	24 VDC, 300 mA
Protection class	IP54 / DIN EN 60529
Outputs / Interface	4 ... 20 mA analogue output Optional: RS-485, MODBUS RTU
Housing	Stainless steel
Dimensions	150 x 200 x 300 mm (W x H x D)
Weight	8 kg
